DevOps Bootcamp Project

Overview

Final project for the DevOps bootcamp. It sets up cloud infrastructure using Infrastructure as Code (IaC):

Terraform — creates the AWS infrastructure
Ansible — configures the servers
Docker — runs the monitoring stack (Prometheus + Grafana) and the web server

Architecture

AWS region: ap-southeast-1
VPC: 10.0.0.0/24 with a public subnet (10.0.0.0/25) and a private subnet (10.0.0.128/25), plus one NAT gateway
3 EC2 nodes (t3.small, Ubuntu 24.04, 16GB disk):
- node1 — private subnet (Prometheus + Grafana via Docker, Cloudflare Tunnel)
- node2 — private subnet (node_exporter)
- node3 — public subnet (nginx web server in Docker)
Access: SSM (EC2-SSM-Role) and SSH (key yusof2-key)

Project Structure

.
├── .github/workflows/  # GitHub Actions CI/CD pipeline
├── terraform/          # AWS infrastructure (VPC, EC2, security groups, inventory)
├── ansible/            # Server setup (playbooks, templates, docker compose)
├── app/                # Web app (front-end "ship")
└── opencode.json       # opencode config (terraform MCP)

Terraform — Create the Infrastructure

File	Purpose
`providers.tf`	AWS provider, S3 backend
`network.tf`	VPC, public/private subnets, NAT gateway
`security.tf`	Security groups (HTTP 80, SSH 22, exporters, Prometheus, Grafana)
`ec2.tf`	3 EC2 instances (ubuntu AMI, SSM role, user_data)
`inventory.tf`	Generates `inventory.ini` for Ansible
`userdata.sh`	Installs Docker + adds user to docker group
`userdata-tunnel.sh`	Installs Docker + runs Cloudflare Tunnel (node1)

How to run

cd terraform
terraform init
terraform apply -auto-approve

Ansible — Configure the Servers

Playbook	Host	Purpose
`playbook-web.yaml`	node3	Runs nginx in Docker
`playbook-stack.yaml`	node1	Runs Prometheus + Grafana via Docker Compose
`playbook-prometheus.yaml`	node1	Installs Prometheus
`playbook-exporter.yaml`	nodes	Installs node_exporter

How to run

cd ansible
ansible-playbook playbook-web.yaml
ansible-playbook playbook-stack.yaml
ansible-playbook playbook-exporter.yaml

Application (app/)

The ship web app is a front-end built with Vite. The index.html content is generated from index.html.j2 during web deployment.

Prerequisites

Terraform 1.15+
Ansible + galaxy roles: geerlingguy.docker, prometheus.prometheus.prometheus, prometheus.prometheus.node_exporter
AWS CLI and AWS credentials
SSH key ~/.ssh/id_ed25519

Deploy Flow

Terraform: terraform apply — creates the VPC, security groups, 3 EC2 instances, and generates inventory.ini
Ansible: run the playbooks you need (web or monitoring)
Access: node3 via public IP; node1/node2 via SSM

CI/CD (GitHub Actions)

A minimal commit pipeline in .github/workflows/commit-pipeline.yml runs on every push to main:

Step	Command
Install dependencies	`npm ci`
Preflight test	`npm test`
Unit tests	`npm run test:unit`
Build	`npm run build`

Notes

terraform/.terraform, state files, and environment variables are excluded in .gitignore
The private security group only allows Prometheus/Grafana access from your current public IP

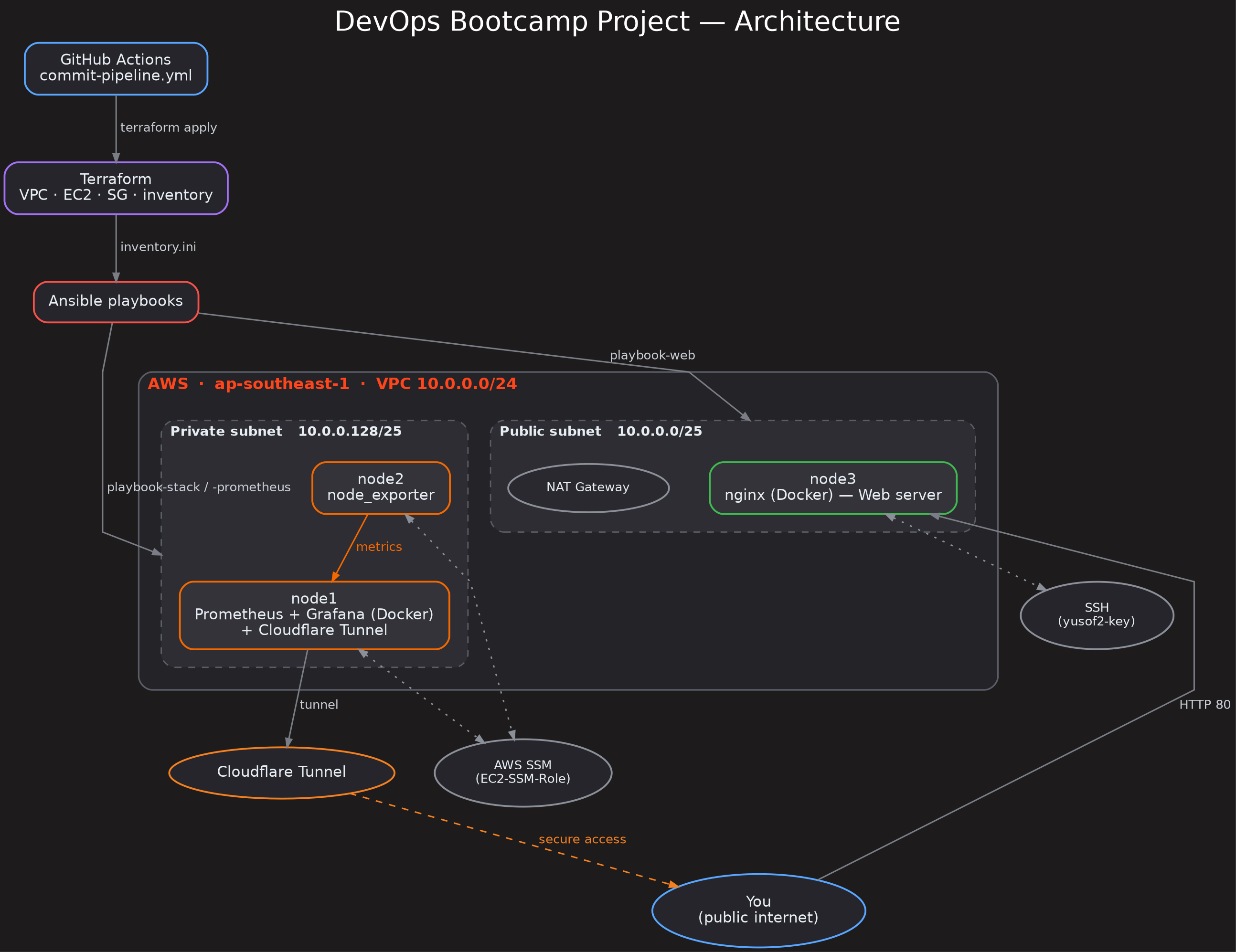

Architecture Diagram

To update this diagram later, just replace img/architecture-diagram.png with your own .png or .jpg — keep the same filename, or edit the src below.
